HT 50

HT 50

HT 50

Transformers
Technical data Dimensions
Max. output voltage: 40 KV Width: 217 mm
Max. power output: 500 W Height: 212 mm
Primary voltage: 300 V Length: 236 mm
Operating frequency:
From: 250 Hz
To: 1000 Hz

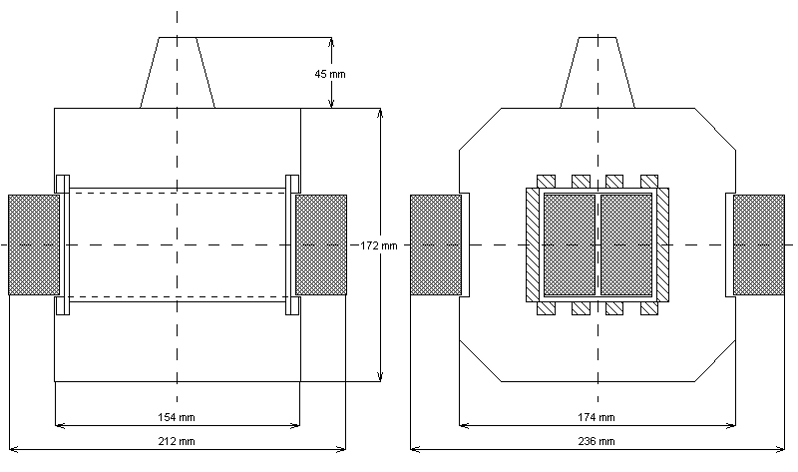

Technical drawing
