GE 8P

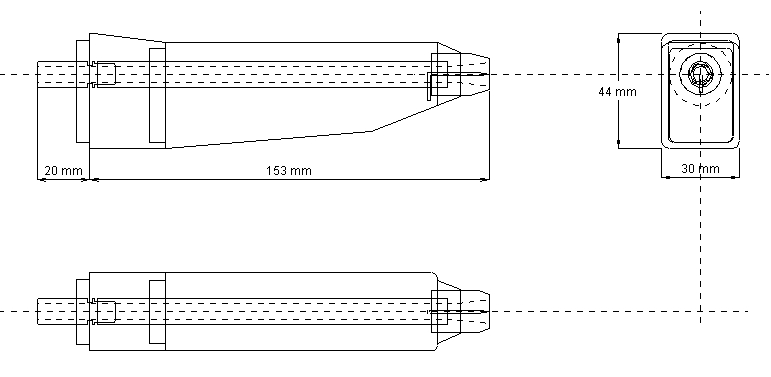

| Technical data | Dimensions |
|---|---|
| Power supply: 24 V | Width: 30 mm |
| Supply current: 0,3 A | Height: 44 mm |
| Output voltage (unloaded): 60 KV | Length: 173 mm |
| Max. output current: 100 µA | |
| Max. power output: 7 W |
| Technical data | Dimensions |
|---|---|
| Power supply: 24 V | Width: 30 mm |
| Supply current: 0,3 A | Height: 44 mm |
| Output voltage (unloaded): 60 KV | Length: 173 mm |
| Max. output current: 100 µA | |
| Max. power output: 7 W |
